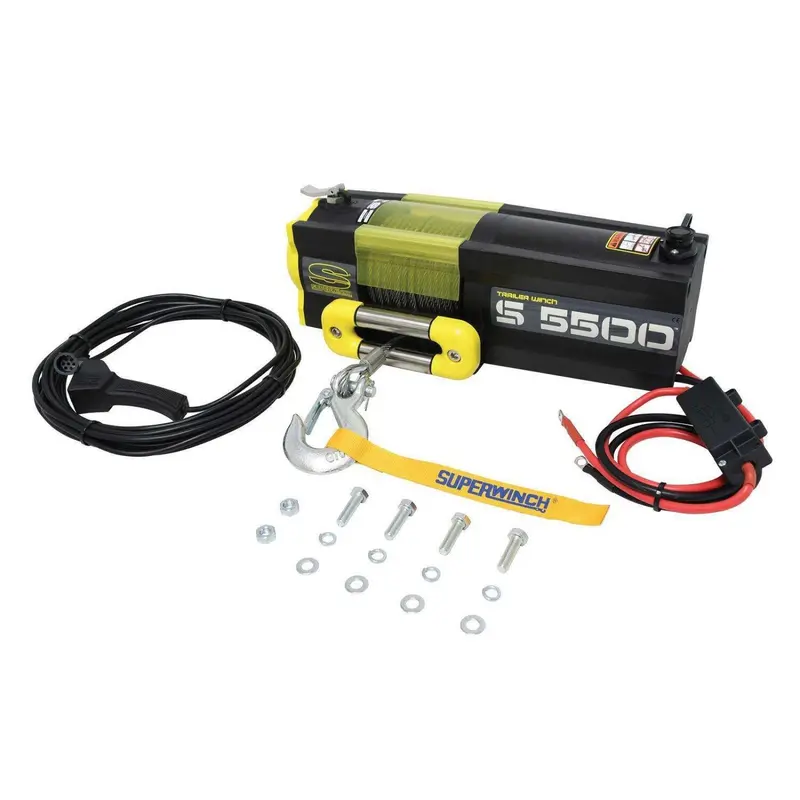

Superwinch S-Series 12V 5500 lb Winch Kit with 40 ft Steel Cable & Remote

Description

The S5500 Winch continues Superwinch’s dominance as the leader in trailer-specific winching. The S5500 trailer winch easily pulls 5,500 lbs powered by its 3.6 hp permanent magnet motor, and its all steel 3-stage planetary gear box. The S5500 includes a safety tinted protective cover which protects the cable, drum and operators fingers. The machined aluminum free-spool lever can also be operated easily by foot.
Features:

• 5,500 lbs. capacity
• 3.6 HP permanent magnet motor provides dynamic braking
• 3-Stage planetary gearing with 159:1 ratio
• Sealed solenoid
• Lever style freespool allows hand or foot operation
• Steel cut gears for better engagement and longevity
• Automatic load holding brake
• Stainless steel 2-way roller fairlead

Specifications:

• Brake System: Mechanical, Automatic Load Holding, Outside Drum
• Clutch: Kick-n-flip
• Color: Yellow
• Dimensions: 19.1in L x 6.6in D x 8.2in H (485mm L x 167mm D x 208mm H)
• Drum Diameter (in.): 1.25
• Drum Length (in.): 2.83
• Fairlead: Strong roller-coaster fairlead/hawse hybrid
• Finish: Powder Coated
• Gear Ratio: 153:1
• Gear System: 1-stage planetary
• Package Height: 13 in.
• Horsepower: 3.6hp pemanent magnet
• Line Speed: 80 Amps Motor Draw/19 FPM (5.8 MPM)
• Material: Steel
• Mounting Bolt Pattern: 4 bolt
• Net. Weight: 51 lbs (23.1kgs)
• Rated Single Line Pull (Lbs): 5500
• Remote Control: 12 ft Rubber Sealed Hand-held
• Rope Length: 1/4 in x 40 ft (6.35mm x 12.2m)
• Rope Material: Steel Wire
• Solenoid: VS4 (sealed submersible vented)
• Voltage: 12V DC
• Package Weight: 56 lbs.
• Winch Hook: Heavy-Duty, Clevis Pinned Latched
• Winch Model: S 5500 Series

Fitment:

• Universal

Included:

• Superwinch S 5500 Series Winch Kit
• All Mounting Hardware

Note:

• 2 Year Limited Manufacturer Warranty
