Description
One of Superwinch’s most popular winches, the Tiger Shark 9500 is the benchmark for performance winching while not breaking the bank. From powerful motors, to strong gears, to long-life stainless steel parts, the Tiger Shark 9500 stands out from the competition.
Features:
- Rated line pull of 9,500 lbs
- 5.2 HP motor
- 3-Stage planetary gearing with 218:1 ratio
- Weather sealed solenoid
- Heat insulated first layer
- Ergonomic pull and turn clutch handle (synthetic rope)
- 80 ft. – 3/8 in. UV coated synthetic rope
- Heavy-duty, clevis pinned, latched hook
- Aluminum hawse fairlead (synthetic rope)
- Rugged handheld remote control
- Stainless steel tiebars
Specifications:
- Brake System: Mechanical, Automatic Load Holding
- Clutch: Pull and Turn, Ergo
- Color: Black
- Dimensions: 24.7in L x 10.9in D x 6.2in H (624mm L x 278mm D x 157mm H)
- Drum Diameter (in.): 2.5
- Drum Length (in.): 9.0
- Fairlead: Aluminum hawse
- Finish: Powder Coated
- Gear Ratio: 218:1
- Gear System: 3-stage planetary
- Horsepower: Series wound 5.2hp/3.8kw, 12V DC
- Line Speed: 80 Amps Motor Draw/19 FPM (5.7 MPM)
- Material: Steel
- Mounting Bolt Pattern: 10in x 4.5in (254mm x 114.3mm)
- Net. Weight: 59 lbs (26.7kgs)
- Rated Single Line Pull (Lbs): 9500
- Remote Control: 12 ft Rubber Sealed Hand-held
- Rope Length: 3/8 in x 80 ft (9.5mm x 24.3m)
- Rope Material: Synthetic
- Solenoid: Weather Sealed Solenoid and Circuit Breaker Protected
- Voltage: 12V DC
- Warranty: Limited Lifetime Mechanical/7 Year Limited Electrical
- Package Weight: 63 lbs.
- Winch Hook: Heavy-Duty, Clevis Pinned Latched
- Winch Model: Tiger Shark 9500 Series
Fitment:
- Universal

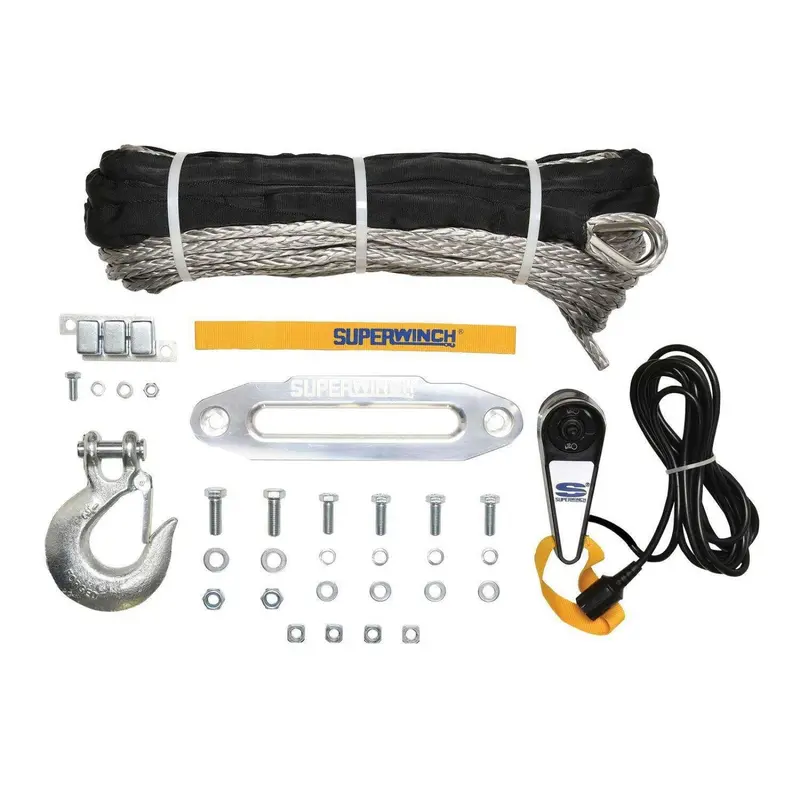

Included:
- Superwinch Tiger Shark Winch Kit
- All Mounting Hardware
Note:
- Limited Lifetime Mechanical/7 Year Limited Electrical Warranty
