Description

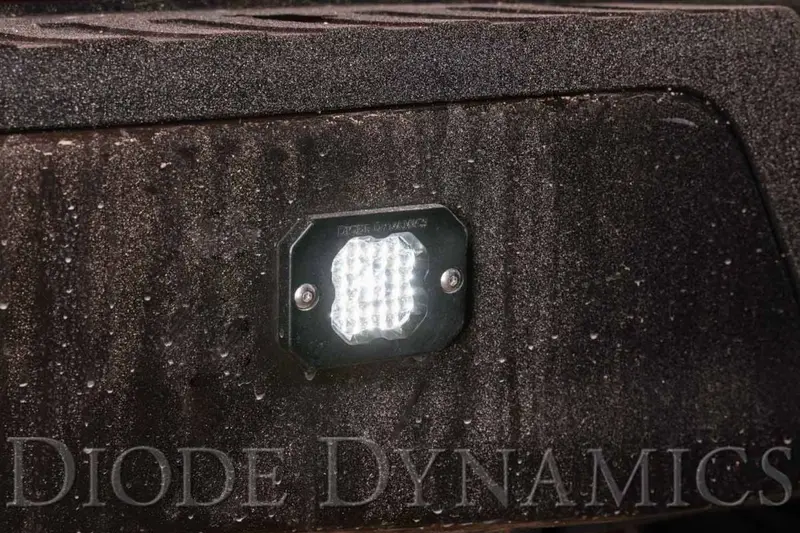

Upgrade your lighting setup with Diode Dynamics DD6471P Stage Series C1 White Sport Flush Mount LED Pods.Experience maximum performance and efficiency with custom-engineered TIR optics, providing focused and functional illumination.
Features:
- Allows for flush installation on bumpers and truck beds
- Ultra-compact, single-LED form factor
- High-intensity 10-watt LED chip
- Backlighting available in white
- Pin-fin heatsink design, for superior thermal dissipation
- Integrated Deutsch-style connector
- Designed, torture-tested and assembled in USA
Specifications:
- Color Temp (CCT): 6000K
- Power (watts): Main Beam: 12.8, Backlight: 0.3
- Operating Voltage: 9-16V
- Current (amps @ 12.8V): Main Beam: 1, Backlight: 0.024
- Polarity: Polarity Specific
- Operating Temperature: -40C to 85C (-40F to 185F)
- LED Emitter: Cree XP-L HI
- Connector(s): Deutsch DT Input
- Driver Features: Constant Current
- Materials: Polycarbonate Lens, Aluminum Casting, Rubber Gasket
- Cooling: Passive, Pin-Fin heatsink
- Compliance Ratings: SAE J575 Durability Test
- Intrusion Ratings: IP67 Weatherproof
- Product Dimensions (in): 2.3 x 3 x 2.4
- Unit Weight (lb): 0.1
- Product Weight (lb): 1.0
In the Box:
- Two (2) Stage Series C1 LED Pods
- Two (2) Deutsch-style wire pigtails
- Two (2) Mounting brackets
