Description
Upgrade your lighting setup with Diode Dynamics DD6428P Stage Series 2″ SAE White Sport Flush Mount LED Pods.These high-performance LED pods feature custom-engineered TIR optics for focused and efficient illumination, available in a variety of functional beam patterns.
Features:

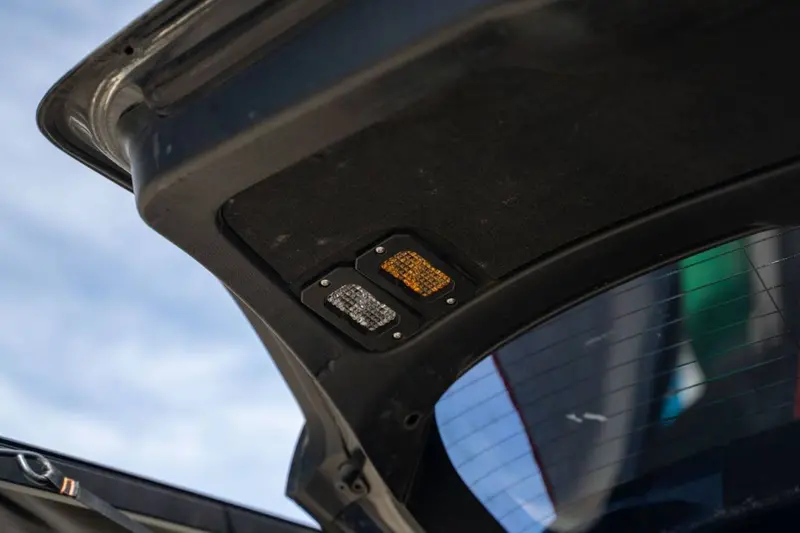

- Allows for flush installation on bumpers and truck beds
- Modern TIR optics for the highest intensity on the market
- Backlighting available in white
- Durable powdercoated aluminum construction
- Integrated Deutsch-style connector
- Pin-fin heatsink design
- Designed, torture tested and assembled in USA
Specifications:
- Color Temp (CCT): 6000K
- Power (watts): Main Beam: 7.7, Backlight: 0.7
- Operating Voltage: 9-16V
- Current (amps @ 12.8V): Main Beam: 0.6, Backlight: 0.06
- Polarity: Polarity Specific
- Operating Temperature: -40C to 85C (-40F to 185F)
- LED Emitter: Luxeon Z ES
- Connector(s): Deutsch DT Input
- Driver Features: Constant Current
- Materials: Polycarbonate Lens, Aluminum Casting, Rubber Gasket
- Cooling: Passive, Pin-Fin heatsink
- Compliance Ratings: SAE J575 Durability Test
- Intrusion Ratings: IP67 Weatherproof
- Product Dimensions (in): 2.5 x 4.5 x 2.4
- Unit Weight (lb): 1.0
- Product Weight (lb): 2.0
Included In the Box:
- Two (2) Stage Series 2″ LED Pods
- Two (2) Deutsch-style wire pigtails
- Two (2) Mounting brackets and hardware
