PPE Dry Sump Oil Pan with Oil Cooler Bypass Kit for 2011–2016 GMC/Chevrolet 6.6L Duramax

Description

In a dry sump, engine oil is stored in a tank outside the engine rather than in the oil pan. There are at least two oil pumps in a dry sump – one pulls oil from the sump and sends it to the tank, and the other pump takes oil from the tank and sends it to lubricate the engine. The minimum amount of oil possible remains in the engine.

Dry sumps have advantages over wet sumps. Because a dry sump does not need to have an oil pan big enough to hold the oil under the engine, the main mass of the engine can be placed lower in the vehicle. This helps lower the center of gravity and can also help aerodynamics.

The oil capacity of a dry sump can be as big as you want. The tank holding the oil can be placed anywhere on the vehicle. In a wet sump, turning, braking and acceleration can cause the oil to pool on one side of the engine. This sloshing can dip the crankshaft into the oil as it turns or uncover the pump’s pick-up tube. Excess oil on the crankshaft can cut horsepower. Dyno improvements of as much as 15 horsepower by switching to a dry sump oil system.

Designed for high performance Duramax engines that require remote oil cooler and filtration solutions. Popular for hot rod, marine and race applications that require larger less restrictive cooler/filter systems. Compact design adds additional clearance for tight engine frames.

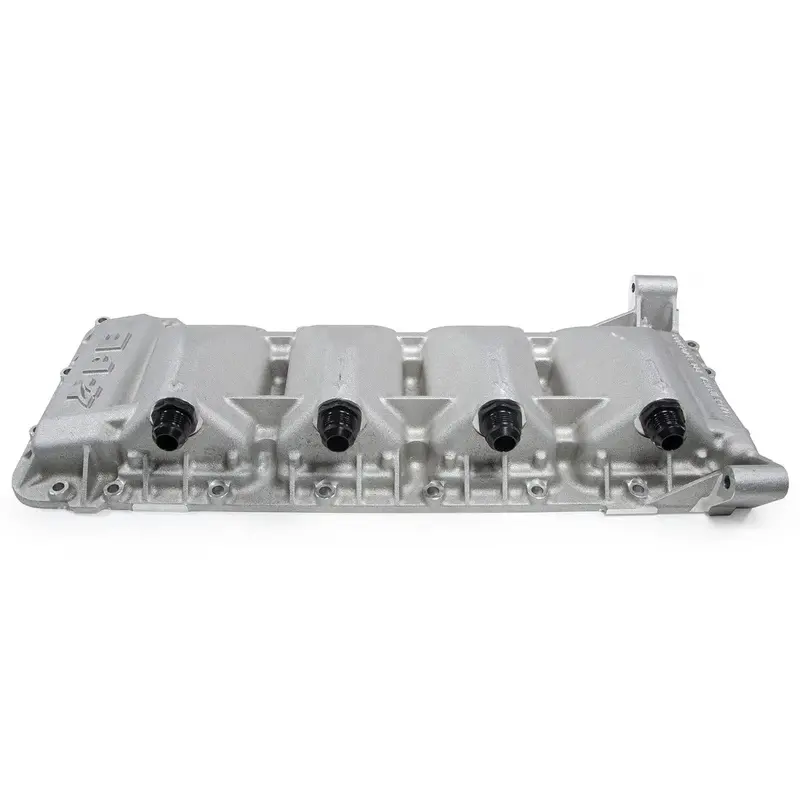

Dry Sump Features:

• Cast aluminum
• Passenger side kick-out position
• Adds rigidity to the engine block
• 304 stainless steel Oil Windage Scrapers
• -12 AN fittings
• Low profile: 4 inches
• Limited Lifetime Warranty

Oil Cooler Bypass Kit Features:

• Machined from billet aluminum with hard-anodized black finish
• Uses existing factory oil-cooler mounting bolts
• #12 ORB port, -16AN (1 inch) oil inlet/outlets
• 1/8 inch NPT oil temp sender port (measures oil temp entering block)
• Includes Engine Coolant Bypass Adapter
• 1 Year Limited Warranty

Fitment:

• 2011-2016 GMC Sierra 2500/3500 6.6L Duramax
• 2011-2016 Chevrolet Silverado 2500/3500 6.6L Duramax

Included:

• (1) PPE Dry Sump Pan
• (1) PPE Internal Oil Cooler Bypass Kit
• All Mounting Hardware

Note:

• Requires use of PPE Oil Cooler Bypass Kit (Included In Package)
