Description
Uncompromised performance through FOX’s patented internal bypass technology delivers the feel of near-endless suspension travel. Exclusive internal bypass technology allows oil to flow around the piston at some points of the stroke – while creating humongous pressure at other points – supporting the vehicle like no other product can.
Floating through terrain is accomplished with FOX’s ride zone – combining a race-developed shock piston, internal bypass and Dual Speed Compression adjustment – allowing fine tuning for weight, terrain and speed.
Dominate any terrain with the brute strength of 3- and 2.5-inch aluminum bodies, cactus cooler reservoirs and 7/8” shafts with redundant seals, all proven in the harshest of environments under the toughest of conditions.
Features:
- Performance tuned for specific vehicle applications
- Durable zinc-plated seamless alloy shock body
- External reservoir system dissipates heat quickly
- CNC machined 6061-T6 black anodized components
- 100% serviceable and tunable for long shock life
- Teflon-lined, heat-treated spherical bearings
- Redundant sealing system prevents fluid leakage
- 7/8″ NitroSteel® shaft resists wear and corrosion
Specifications:
- Series: Factory Race Series
- Usage: Factory height (0–3” Lift compatible)
- Position: Front
- Item: Strut & Spring (Coilover)
- Top Mount: OEM / TM
- Bottom Mount: Eyelet
- Reservoir Type: Remote
- Body Material: Steel
- Color/Finish: Zinc (Steel)
- Extended Length: 22.48 in
- Compressed Length: 17.59 in
- Shock Stroke (Travel): 4.89 in
- Body Diameter: 2.5 in
Included:

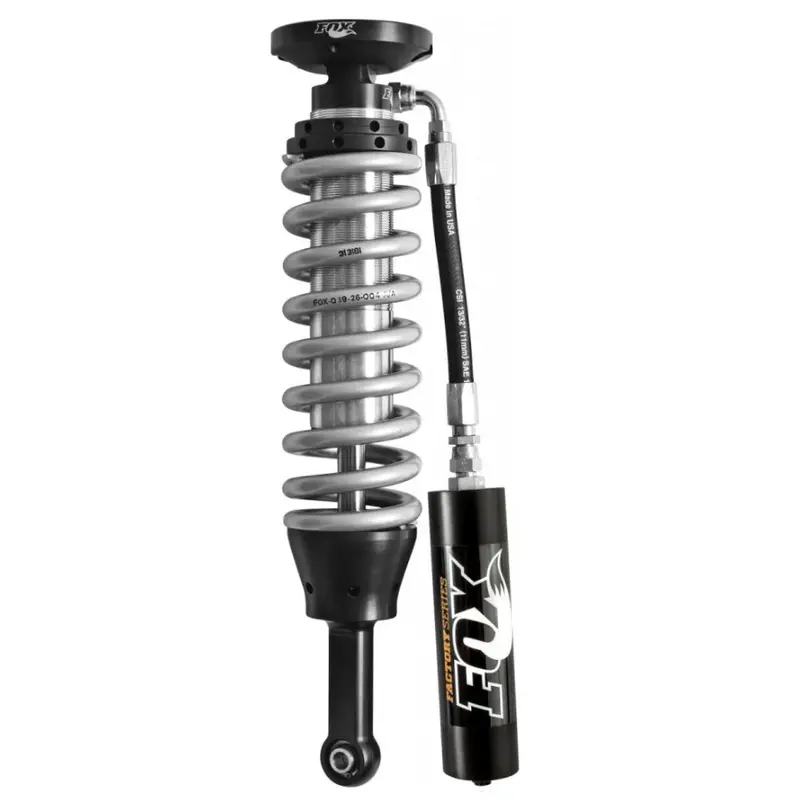

- (1) Fox 2.5 Factory Series Front Coilover w/ Remote Reservoir Set
Fitment:
- 2005-2023 Toyota Tacoma 2WD/4WD
Notes:
- Limited 1 Year Warranty
- Fits 6 lug version only
- Requires Upper Control Arm
- Upper Control Arms for Tacoma UCA0005 or SPC Upper Control Arms 25470 (Recommended)
