Bilstein B8 5100 Adjustable Lift Shocks – 0–2″ Lift for 2015–2020 Ford F-150 4WD

Description

Bilstein B8 5100 (Ride Height Adjustable) shock absorbers designed for the Ford F150 4wd feature multiple snap-ring grooves in the body allow for different spring seat positions, providing 0 inches to 2 inches of front lift with OE springs. These monotube shock absorbers have a 46mm digressive piston a with self-adjusting deflective disc valve setting. Bilstein 5100 shock absorbers provide increased wheel travel and improved handling. Utilizing a B8 5100 shock absorber is the easiest way to level out your vehicle.

Bilstein 5100 Series shocks are perfect for trucks and suvs that have been lifted. The extra demands larger tires and a taller stance require more suspension performance. Bilstein’s patented digressive valving is perfect for these conditions.

This package includes both front and rear shocks (rear are non-adjustable) for a complete set of 4.

Features:

• Adjustable Lift Height (0 to 2 inches), Multiple Positions
• Great Solution to Level Vehicle
• Front shocks adjust from 0 to 2 inches
• Rear shocks fit with 0 to 1 inches of lift
• High Pressure Mono-Tube Design
• Replaces Factory Struts, Keeps Coil Springs
• Zinc Plated Finish with Clear Coat for Maximum Protection
• Complete set of 4 matching shocks

Specifications:

Front Shocks

• Adjustable Damping: Non-Adjustable
• Body Design: Snap Ring Grooved Body (Coilover)
• Body Diameter (ID): 46mm
• Boot Included: No
• Collapsed Length (IN): 16.91
• Collapsed Length (MM): 429.6
• Extended Length (IN): 22.46
• Extended Length (MM): 570.5
• Finish: Zinc Plated
• Internal Design: Monotube
• Lower Mount Type: Crossbar
• Reservoir: No
• Spring Seat Included: No
• Upper Mount Type: Stem

Rear Shocks

• Adjustable Damping: Non-Adjustable
• Body Design: Smooth Body (Non-Coilover)
• Body Diameter (ID): 46mm
• Boot Included: Black Bellows
• Collapsed Length (IN): 17.52
• Collapsed Length (MM): 445.0
• Extended Length (IN): 28.74
• Extended Length (MM): 730.0
• Finish: Zinc Plated
• Internal Design: Monotube
• Lower Mount Type: Eye 12mm
• Reservoir: No
• Spring Seat Included: No
• Upper Mount Type: Eye 12mm

Fitment:

• 2015-2020 Ford F-150 4WD

Included:

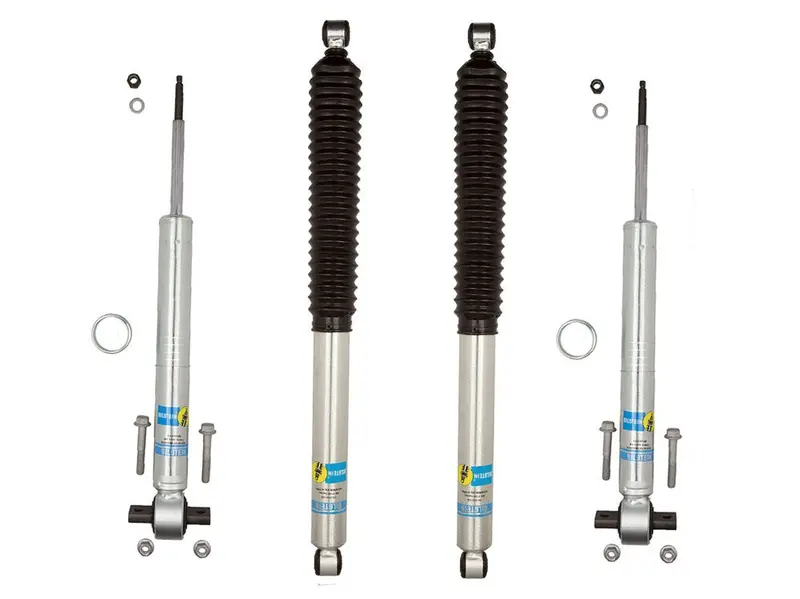

• (2) Front Bilstein B8 5100 Height Adjustable Shocks
• (2) Rear Bilstein B8 5100 Non-Adjustable Shocks

Note:

• Limited Lifetime Warranty
